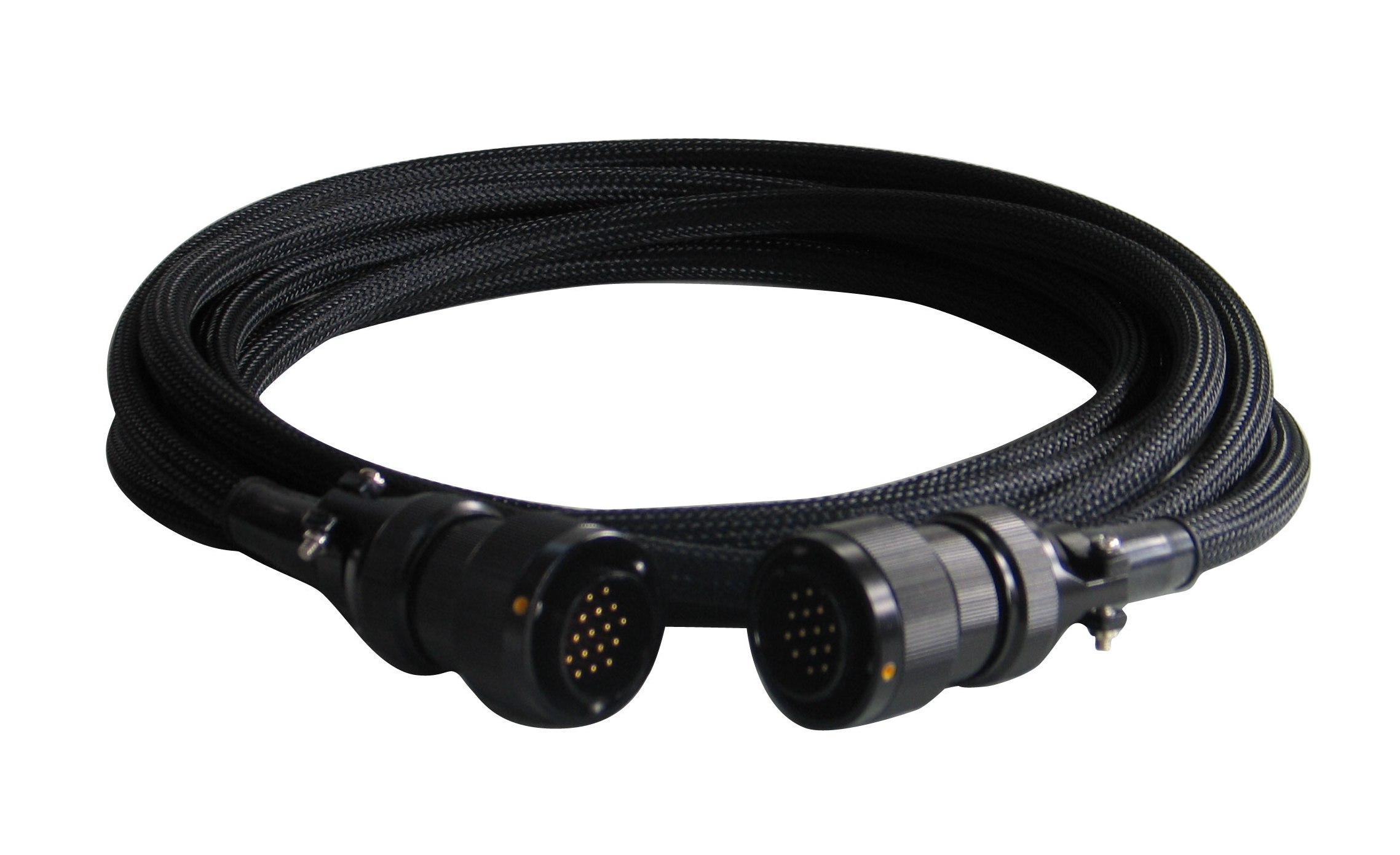

DuGyte GP121 Snake Cable

From: $321.50

The DuGyte 121 All-In-One Cable is designed specifically for and can only be used with the DuGyte GP121 “Rapid Plug-n-Play” product. All DuGyte Cables, whether built separately or as part of a DuGyte Pedalboard System, are manufactured with the identical consistency, workmanship and quality.

SKU: GP121-C-5RXS Categories: ,

Description

Overview

DuGyte 121 – Cable Only

The Pedalboard Connector

  • 1 x MPJL-5 Multi-Pin Plug [Bayonet Style] connector

Back stage Connector

  • 1 x MPJL-5 Multi-Pin Plug [Bayonet Style] connector
Cable Specification

Description

  • An overall matte PVC jacketed snake cable consisting of multi-pair 24 AWG stranded bare annealed copper, polypropylene insulated signal and DC power channels individually shielded and jacketed.
    1. Signal Lines & DC Power Lines
      • Conductor
        • AWG Size and Stranding: 24 AWG 7 strands 32 AWG
        • Material: Bare annealed copper
      • Insulation Material: Polyvinyl chloride
      • Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
      • Pair Jacket Material: White polyvinyl chloride
    2. Cable Assembly
      • Jacket Material: Matte polyvinyl chloride
      • Jacket Color: Black
    3. Electrical Specifications
      • Capacitance @ 1 kHz:
        • Between conductors: 25 pF/ft.
        • Conductor to shield: 45 pF/ft.
      • Characteristic Impedance: 60 ohms nominal
      • Resistance at 20C: 24.5 ohms/1000 ft.
