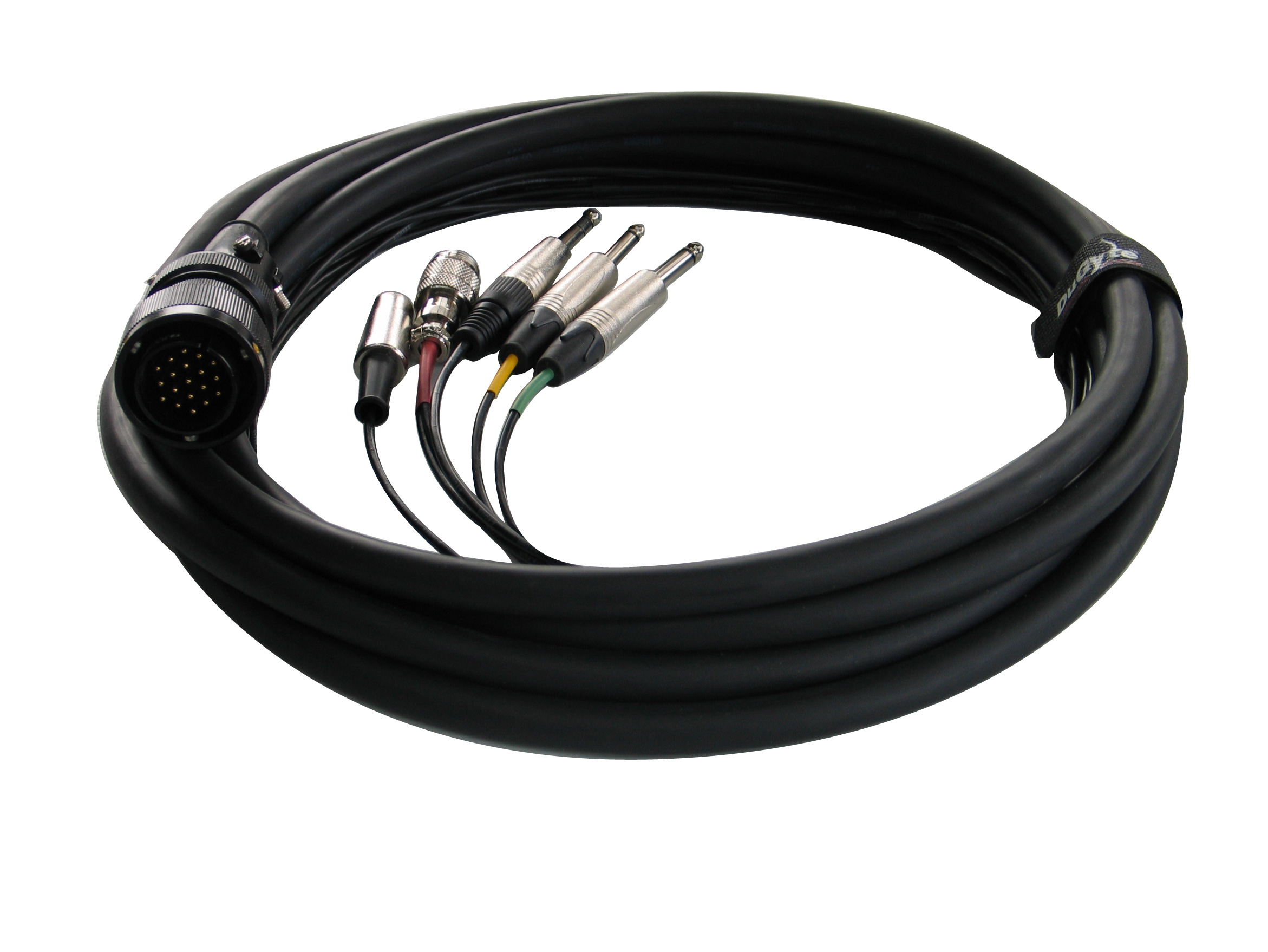

DuGyte 521 – Cable
The Pedalboard Connector
- 1 x MPJL-5 Multi-Pin Plug [Bayonet Style] connector
Back Stage Cable Connectors
- 6.3mm Mono Jack Plug – Amplifier In
- 6.3mm Stereo Jack Plug – Relay for use as Footswitch or Other
- 6.3mm Mono Jack Plug – Relay for use as Guitar Wireless Loop back or Other
- 5-Pin MIDI Plug – 5-Pin for midi switch device
- 4-Pole DC Power Plug – for use with DuGyte AC/DC Power Supply
Cable Specification
Description:
- An overall matte PVC jacketed snake cable consisting of multi-pair 24 AWG stranded bare annealed copper, polypropylene insulated signal and DC power channels individually shielded and jacketed.
-
- Signal Lines & DC Power Lines
- Conductor
- AWG Size and Stranding: 24 AWG 7 strands 32 AWG
- Material: Bare annealed copper
- Insulation Material: Polyvinyl chloride
- Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
- Pair Jacket Material: White polyvinyl chloride
- Conductor
- Cable Assembly
- Jacket Material: Matte polyvinyl chloride
- Jacket Color: Black
- Electrical Specifications
- Capacitance @ 1 kHz:
- Between conductors: 25 pF/ft.
- Conductor to shield: 45 pF/ft.
- Characteristic Impedance: 60 ohms nominal
- Resistance at 20C: 24.5 ohms/1000 ft.
- Capacitance @ 1 kHz:
- Signal Lines & DC Power Lines
