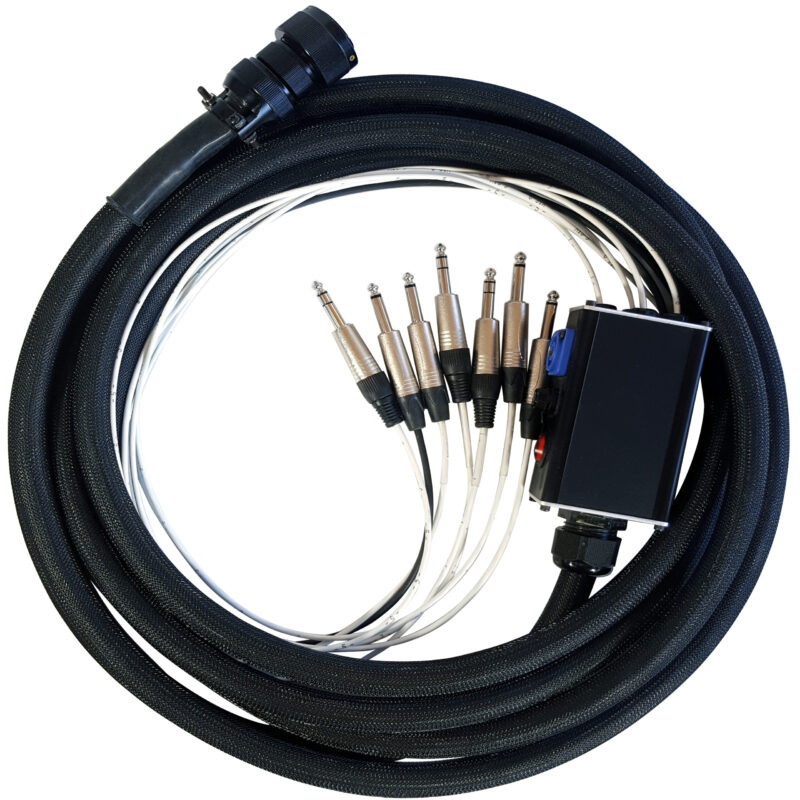

DuGyte 7CM – Cable Only
The Pedalboard Connector
- MPJL-5 Multi-Pin Plug [Bayonet Style]
Back Stage Connectors
- 6.3mm Balanced/Stereo Jack Plug – Amplifier In [Channel-1]
- 6.3mm Balanced/Stereo Jack Plug – Amplifier In [Channel-2]
- 6.3mm Mono Jack Plug – Effects Send [Channel-1]
- 6.3mm Mono Jack Plug – Effects Send [Channel-2]
- 6.3mm Mono Jack Plug – Effects Return [Channel-1]
- 6.3mm Mono Jack Plug – Effects Return [Channel-2]
- 6.3mm Stereo Jack Plug – Relay for use as Footswitch, Wireless Loop back or Other
- AC Mains PowerCon Input Receptacle [Blue Style] – AC Mains PowerCon power In
Cable Specification
Description
- An overall matte PVC jacketed snake cable consisting of multi-pair 24 AWG stranded bare annealed copper, polypropylene insulated signal channels individually shielded and jacketed, along with a single multi-conductor 14 AWG stranded bare copper AC Mains Power channel, PVC insulated and shielded.
- Signal Lines
- Conductor
- AWG Size and Stranding: 24 AWG – 7 strands
- Material: Bare annealed copper
- Insulation Material: Polypropylene
- Shield: Aluminum/polyester tape and 24 AWG – 7 strands tinned copper drain wire
- Pair Jacket Material: White polyvinyl chloride
- Conductor
- AC Power Line
- Conductor
- AWG Size and Stranding: 14 AWG 19 strands
- Material: Bare annealed copper
- Insulation Material: Polyvinyl chloride
- Shield: Aluminum/polyester tape and 18 AWG 7 strand tinned copper drain wire
- Conductor
- Cable Assembly
- Jacket Material: Matte polyvinyl chloride
- Jacket Color: Black
- Electrical Specifications
- Capacitance @ 1 kHz:
- Between conductors: 25 pF/ft.
- Conductor to shield: 45 pF/ft.
- Characteristic Impedance: 60 ohms nominal
- Resistance at 20C: 24.5 ohms/1000 ft.
- Capacitance @ 1 kHz:
