DuGyte GP121 Rapid Plug-N-Play System

From: $675.00

The GP121 is the ‘Rapid Plug-n-Play’ model in the GP-Series. It delivers the same capabilities and power options as the GP721, however it includes  the addition of a back stage junction box and a upgraded all-in-One cable that has single-plug connectors at each end.

Back stage junction box is designed for semi-permanent connection of your backstage gear – like amp/s, effects racks, power, etc. With all the backstage gear ‘patched in’ to the junction box, it only take one connection at the pedalboard and one connection back stage to connect all power and signal! As a result, you now have the fastest set up tear down method, bar none!



SKU: GP121-S-5RXS Categories: ,

Description

Overview

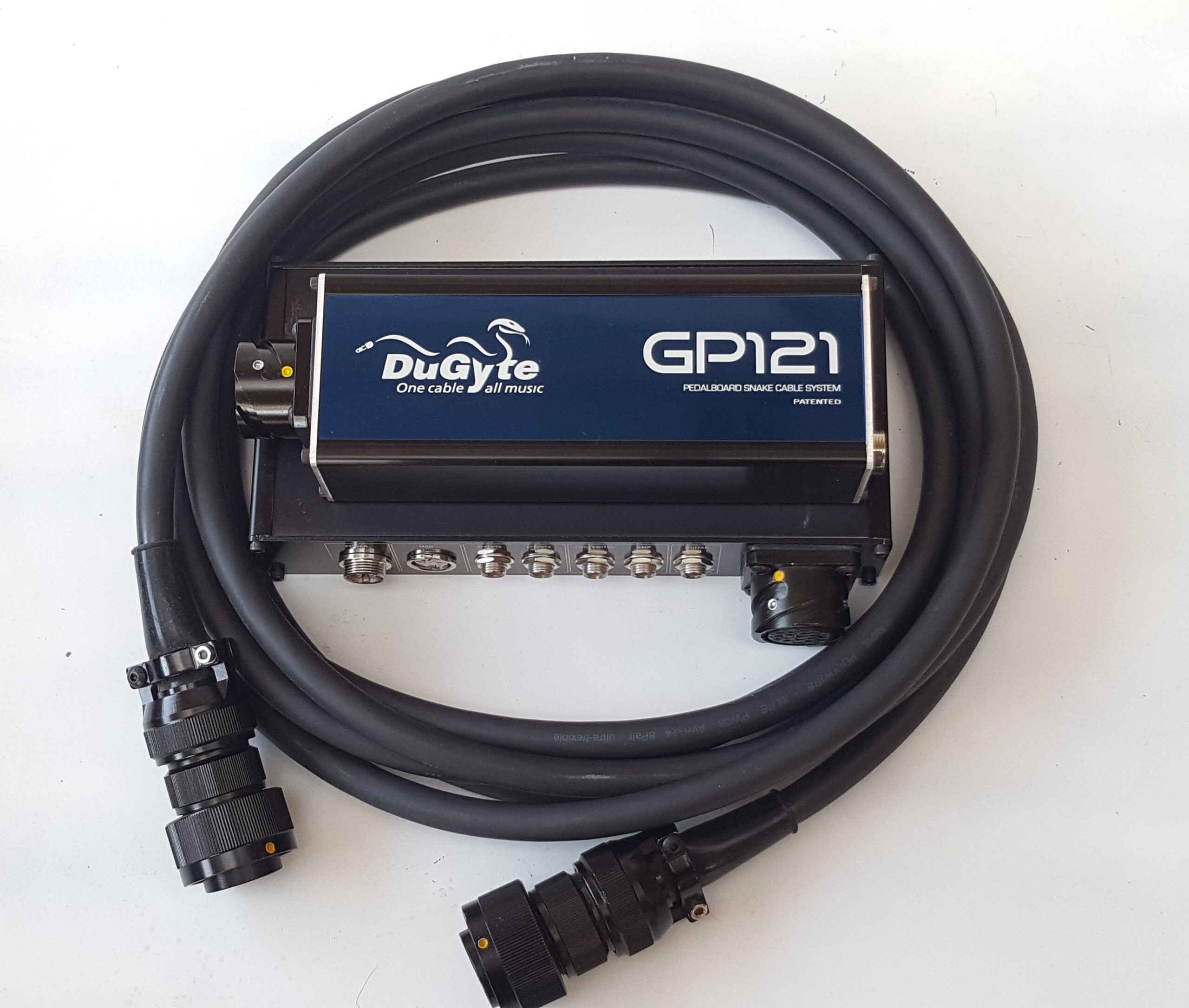

GP121 System Components include

  1. Pedalboard Junction Box
  2. Back-stage Junction Box (half-rack size)
  3. All-In-One Snake Cable
  4. DuGyte GP-Series AC/DC Power Supply

GP-Series Power

All GP-Series Systems come with isolated power outs and are supplied with a universal 100-240 VAC 50/60 Hz 3.5amp Class-II AC/DC Power Supply. Each power supply comes with Power Factor Correction (PFC) for better EMI and EMC performance.

Because each GP system has the option to expand the power outputs by adding a Viper ISO 6, just in case you want to add more pedals, or you have lots of pedals to begin with. It can be powered straight off your GP121.  See DuGyte Systems Viper Series mega current isolated Power Supplies here for more details.

Junction Box Specifications

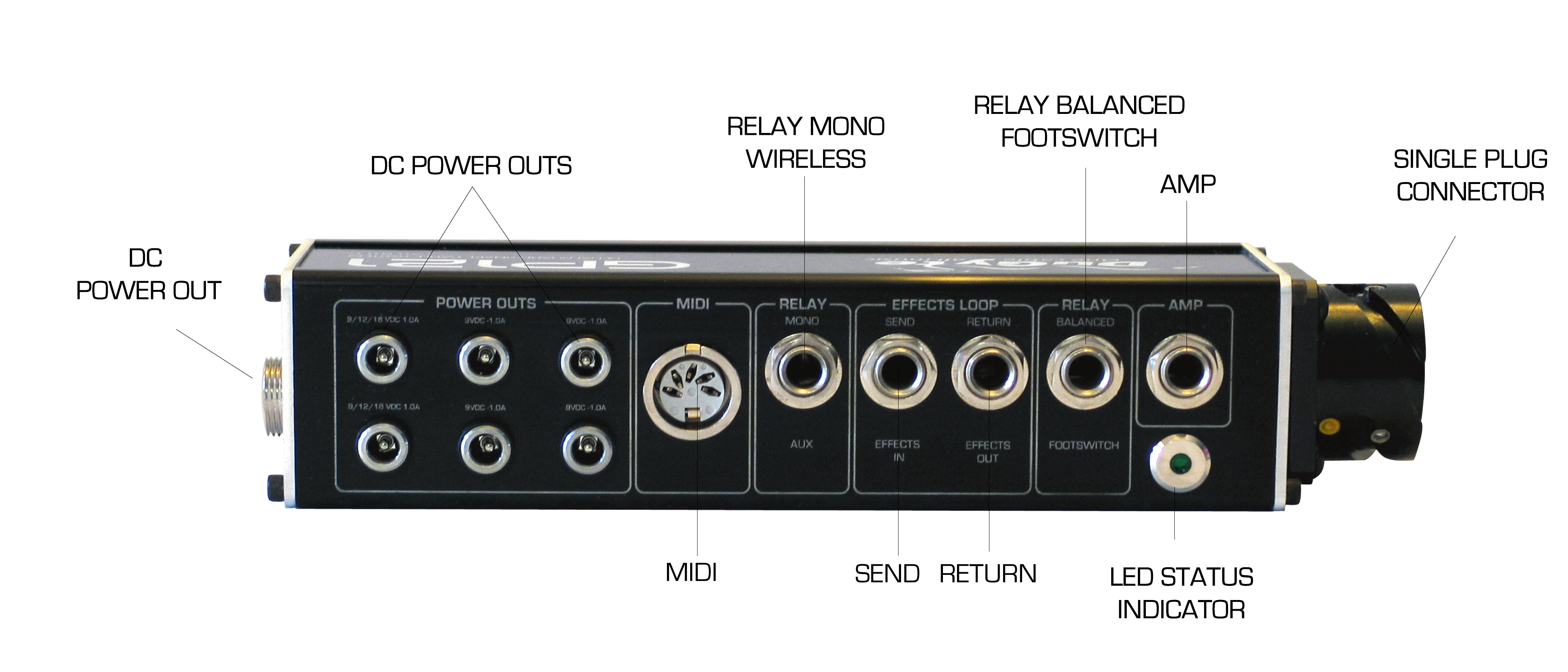

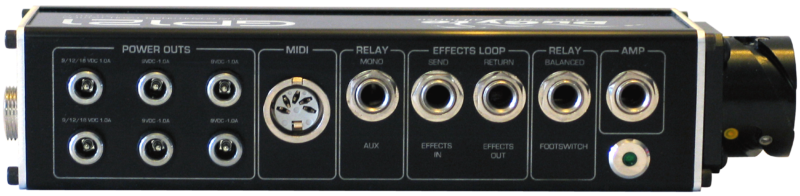

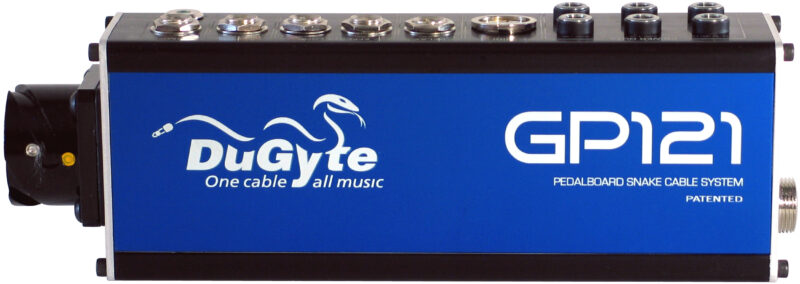

GP121 Pedalboard Junction Box

Signal Connections

  • Amp: 6.3mm Unbalanced/Mono Jack – Input to amplifier
  • Relay Aux-1: 6.3mm Stereo Jack – for Footswitch or Other Input/Output
  • Effects Loop Return: 6.3mm Mono Jack – Input to amplifier
  • Effects Loop Send: 6.3mm Mono Jack – Output from amplifier
  • Relay Aux-2: 6.3mm Mono Jack – Wireless Loopback or Other Input/Output
  • MIDI: 5-Pin Midi Socket – Use with any MIDI Device

Power Connections

  • Four (4) Isolated Outputs – 9VDC @ 1000mA each
  • Two (2) Isolated Outputs – switch selectable 9/12/18VDC @ 1000mA each
  • Standard 2.1mm DC-Power Sockets – centre pin negative
  • One (1) 24VDC Power Out (4 Pin Cobra plug -for power expansion options)

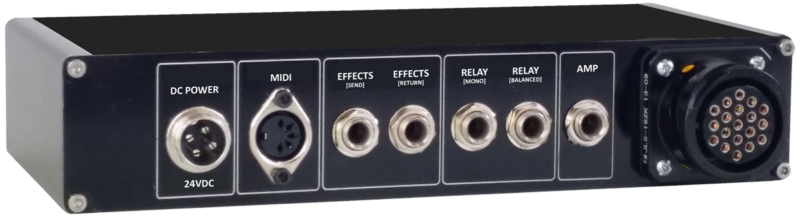

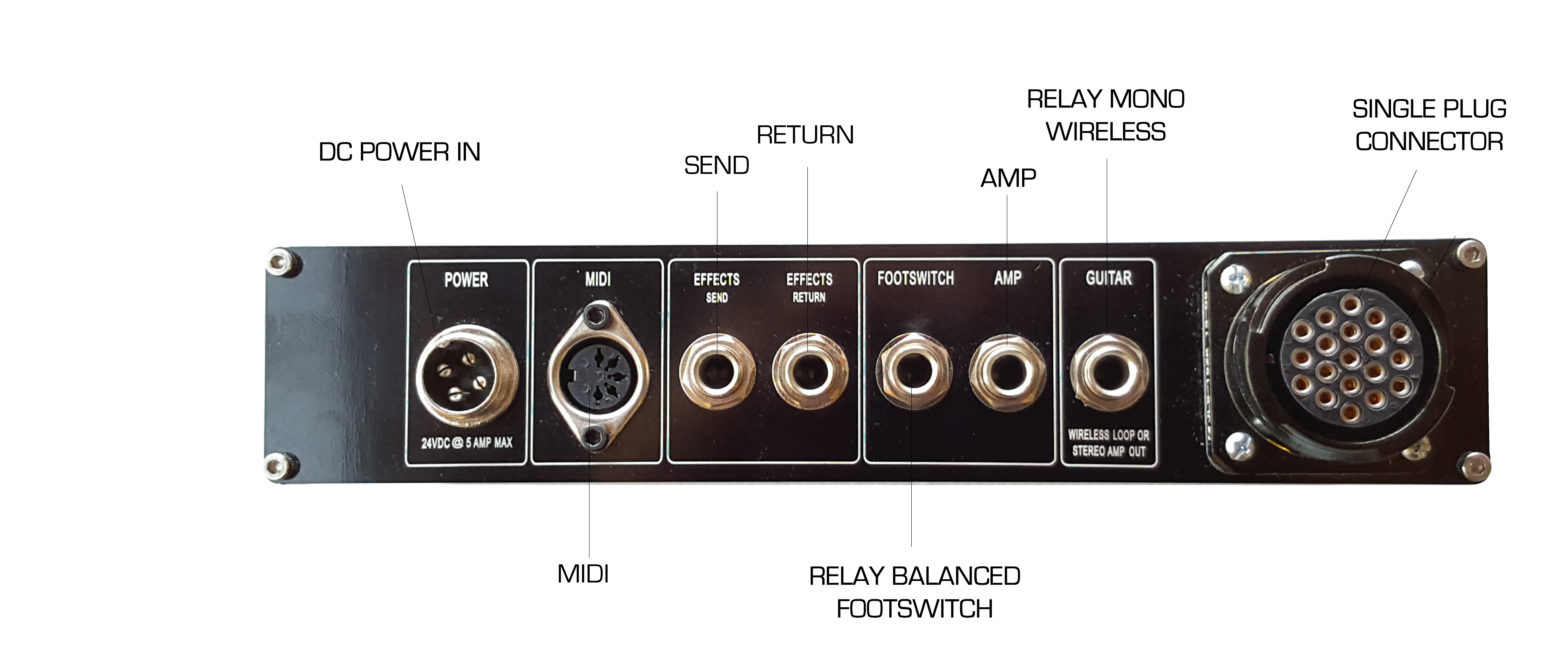

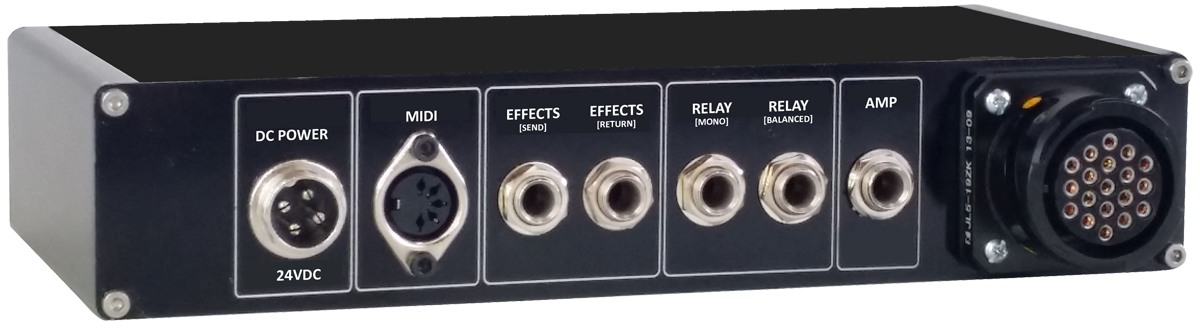

GP121 Back Stage Junction Box

Signal Connections

  • Amp: 6.3mm Mono Jack – Input to amplifier
  • Relay Aux-1: 6.3mm Stereo Jack – for Footswitch or Other Input/Output
  • Effects Loop Return: 6.3mm Mono Jack – Input to amplifier
  • Effects Loop Send: 6.3mm Mono Jack – Output from amplifier
  • Relay (Guitar) Aux-2: 6.3mm Mono Jack Wireless or Other Input/Output
  • MIDI: 5-Pin Midi Socket – Use with any MIDI Device

Power Connection

  • Panel Mount 4-Pole Cobra Style Socket –Male Receptacle
Cable Specification

DuGyte Cable Channels & Connections

All DuGyte Pedalboard All-In-One Snake Cables use high quality industrial multi-pin connectors, and professional style audio jacks and plugs and are designed, manufactured and tested to withstand the rigorous life of touring and performing.

Pedalboard Junction Box Channels

Class Qty Type Usage Comments
Signal 1 Balanced/Stereo Channels Relay Aux-1
4 Unbalanced/Mono Channels Amp; Effects Loop Return; Effects Loop Send; Relay Aux-2
1 MIDI Channel MIDI Device
Power Out 4 DC Power Channels 9VDC Pedal Power Output
2 DC Power Channels 9/12/18VDC Pedal Power Output Switch selectable
1 DC Power Out 24VDC For Power Expansion

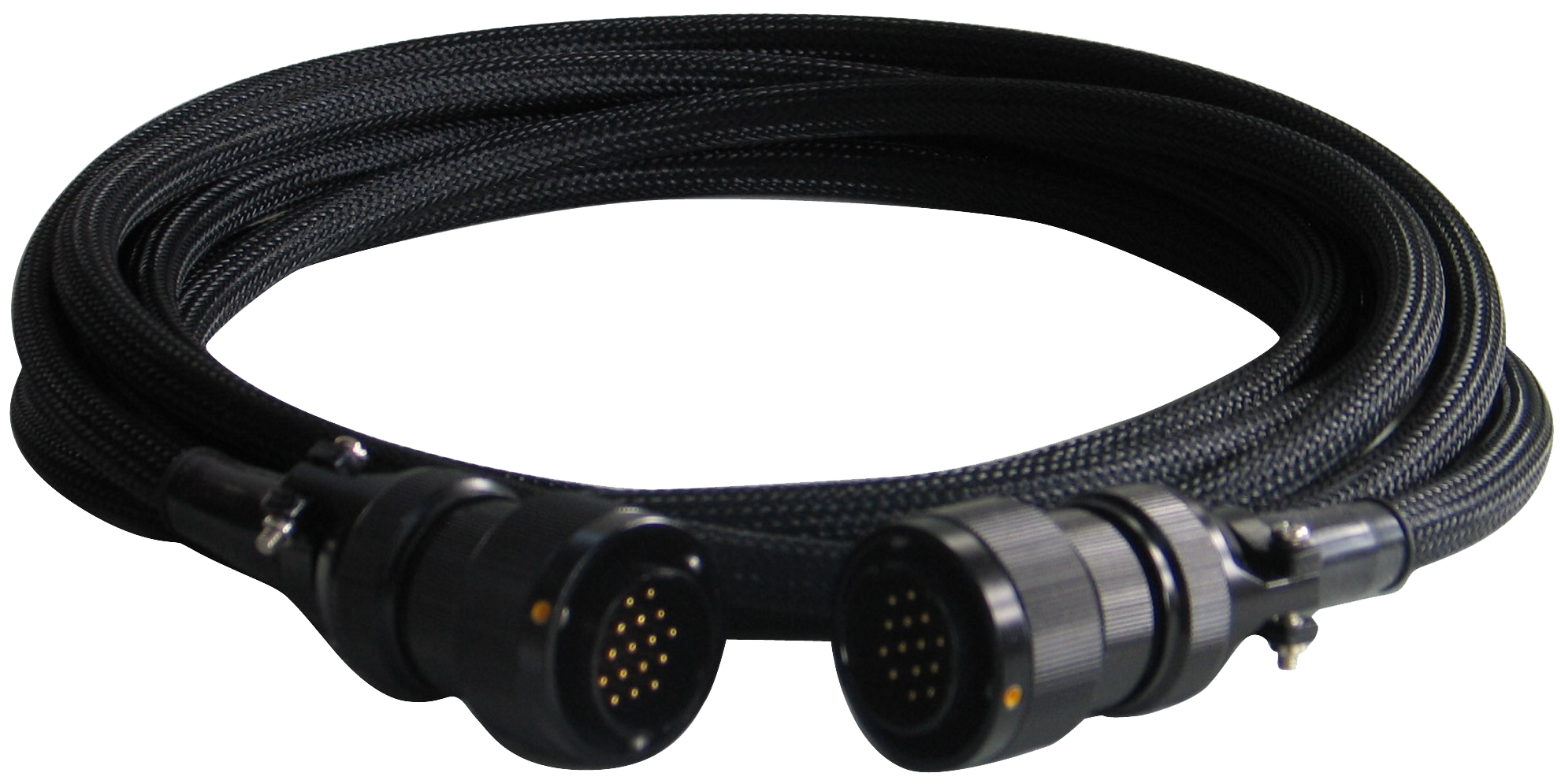

Snake Cable Leads & Connectors
Location / Class Qty Type Usage
Pedalboard 1 MPJL5-19 Pin Bayonet Connector All Signal & Power
Back Stage MPJL5-19 Pin Bayonet Connector All Signal & Power

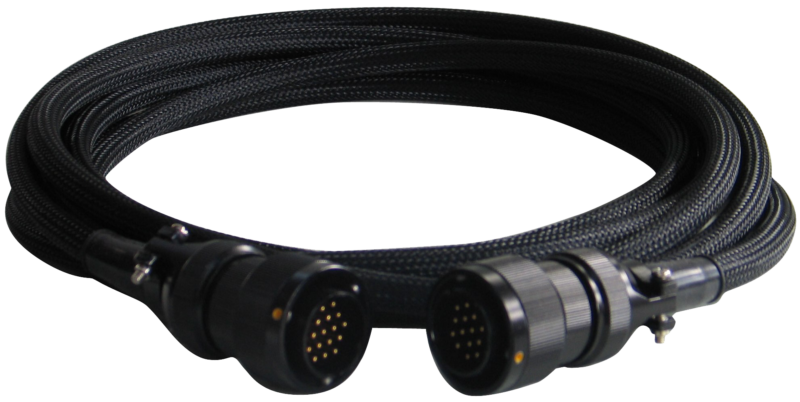

DuGyte All-In-One Cable Loom

An overall matte PVC jacketed snake cable consisting of 24 AWG stranded bare annealed copper, polypropylene insulated signal and DC power channels, most noteworthy all are individually shielded and jacketed.

    1. Signal & DC Power Lines
      • Conductor
        • AWG Size and Stranding: 24 AWG 7 strands 32 AWG
        • Material: Bare annealed copper
      • Insulation Material: Polyvinyl chloride
      • Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
      • Pair Jacket Material: White polyvinyl chloride
    2. Cable Assembly
      • Jacket Material: Matte polyvinyl chloride
      • Jacket Color: Black
    3. Electrical Specifications
      • Capacitance @ 1 kHz:
        • Between conductors: 25 pF/ft.
        • Conductor to shield: 45 pF/ft.
      • Characteristic Impedance: 60 ohms nominal
      • Resistance at 20C: 24.5 ohms/1000 ft.
Power Supply Specification

DuGyte GP-Series AC/DC Power Supply

Overview

DuGyte GP-Series AC/DC Power Supplies are a highly reliable, single-output, desktop style power supply. Its rating is a class II power unit (with PFC), equipped with a standard IEC320-C14 AC inlet. It has an operating input range from 100VAC to 240VAC..

With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, all DuGyte GP-Series Power Supplies are compliant with USA EISA 2007IDoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. The entire GP-Series Power Supplies utilize 94V-0 flame retardant plastic case and are certified for international safety regulations

Features

  • Global Certificates: C Tick, UL, CUL, CE, TUV, PSE and more
  • Universal AC Input Full range
  • 3 pole AC inlet IEC320-C14, Class-II power unit
  • Built-in Active Power Factor Correction (PFC)
  • No Load Power Consumption <0.15W
  • Energy Efficiency Level VI
  • Short Circuit / Current Overload / Over Voltage / Over Temperature Protection
  • Fully-Enclosed Plastic Case
  • Wide-Range Working Temperature -30-+70℃
  • LED Power-On Indicator



Additional information

Weight 3.5 kg
