DuGyte GP721

DuGyte GP721 System

From: $520.00

The DuGyte GP721 is a level up from the GP521 and is designed for guitarists who use stomp box pedals that incorporate effects loop set ups, or complete looper style pedalboard set ups. The GP721 also provides switch selectable power voltages options to cater for a greater array of pedals or multi effects pedals .

Offering multiple individually shielded signal channels combined with high current DC isolated power, with switch selectable voltages, the DuGyte GP721 will remove any noise and hum you currently experience, making you sound better. And because the DuGyte use’s only one cable, it makes it very easy to set up and tear down.

SKU: GP721-S-5RXS Categories: ,

Description

Overview

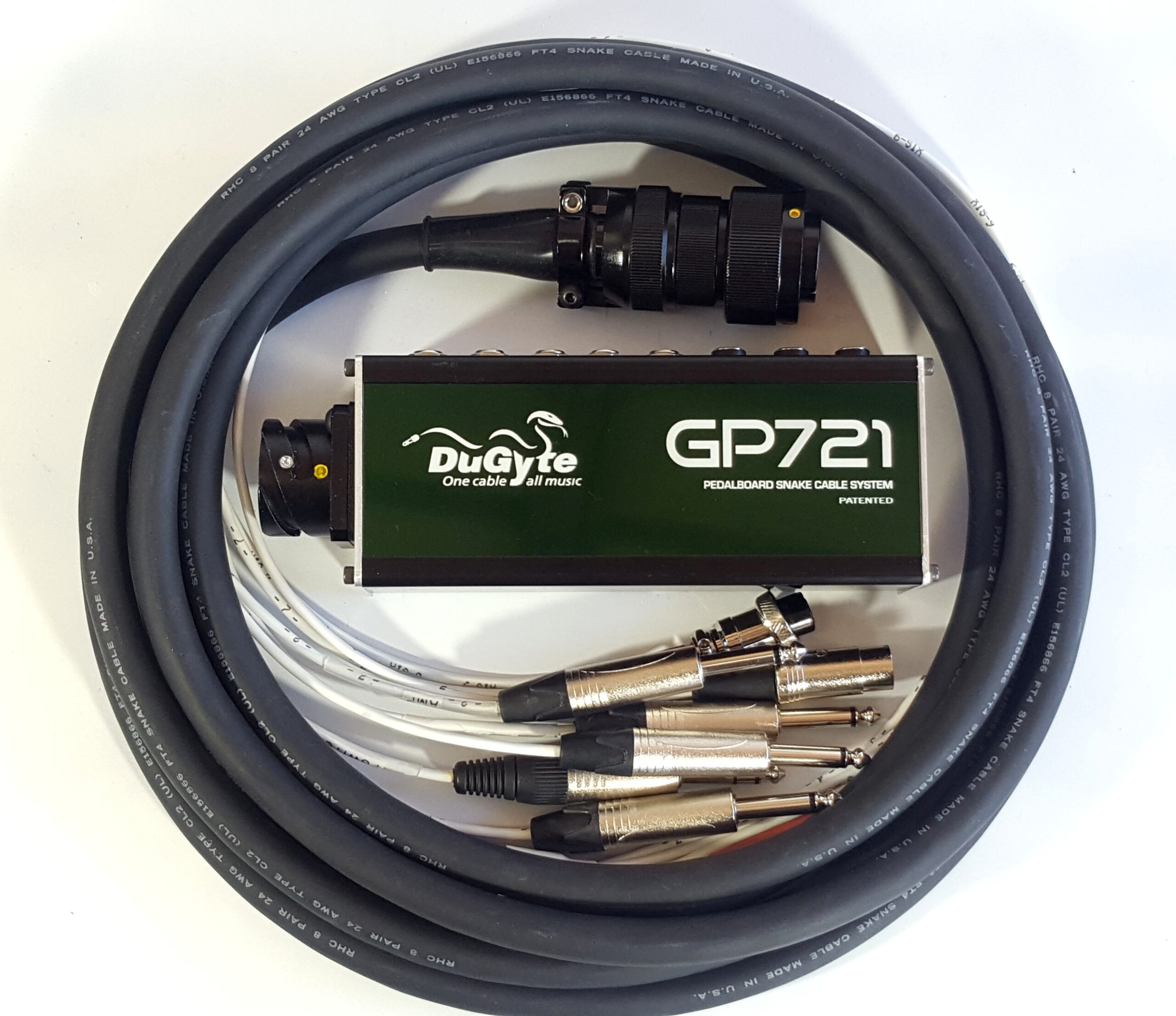

GP721 System Components include

  1. Pedalboard Junction Box
  2. All-In-One Snake Cable
  3. GP-Series AC/DC Power Supply

GP-Series Power Supply

All GP-Series Systems are supplied with a universal 100-240 VAC 50/60 Hz Class-II AC/DC Power supply. Each power supply comes with Power Factor Correction (PFC) for better EMI and EMC performance. All GP systems provide the option to expand the power by adding a Viper ISO 6, because you may want to add more pedals. See DuGyte Systems Viper Series high current isolated Power Supplies here for more details.

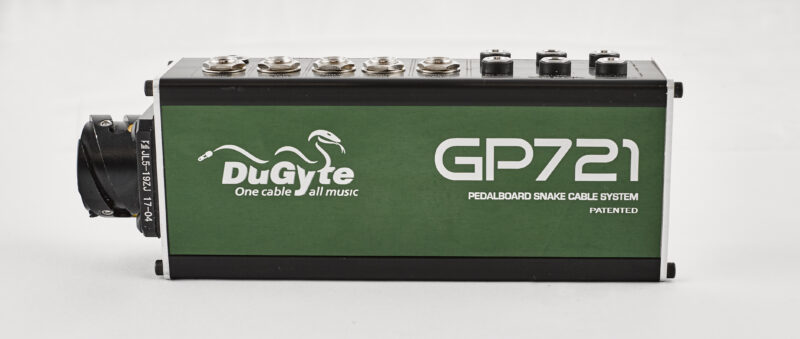

Junction Box Specification

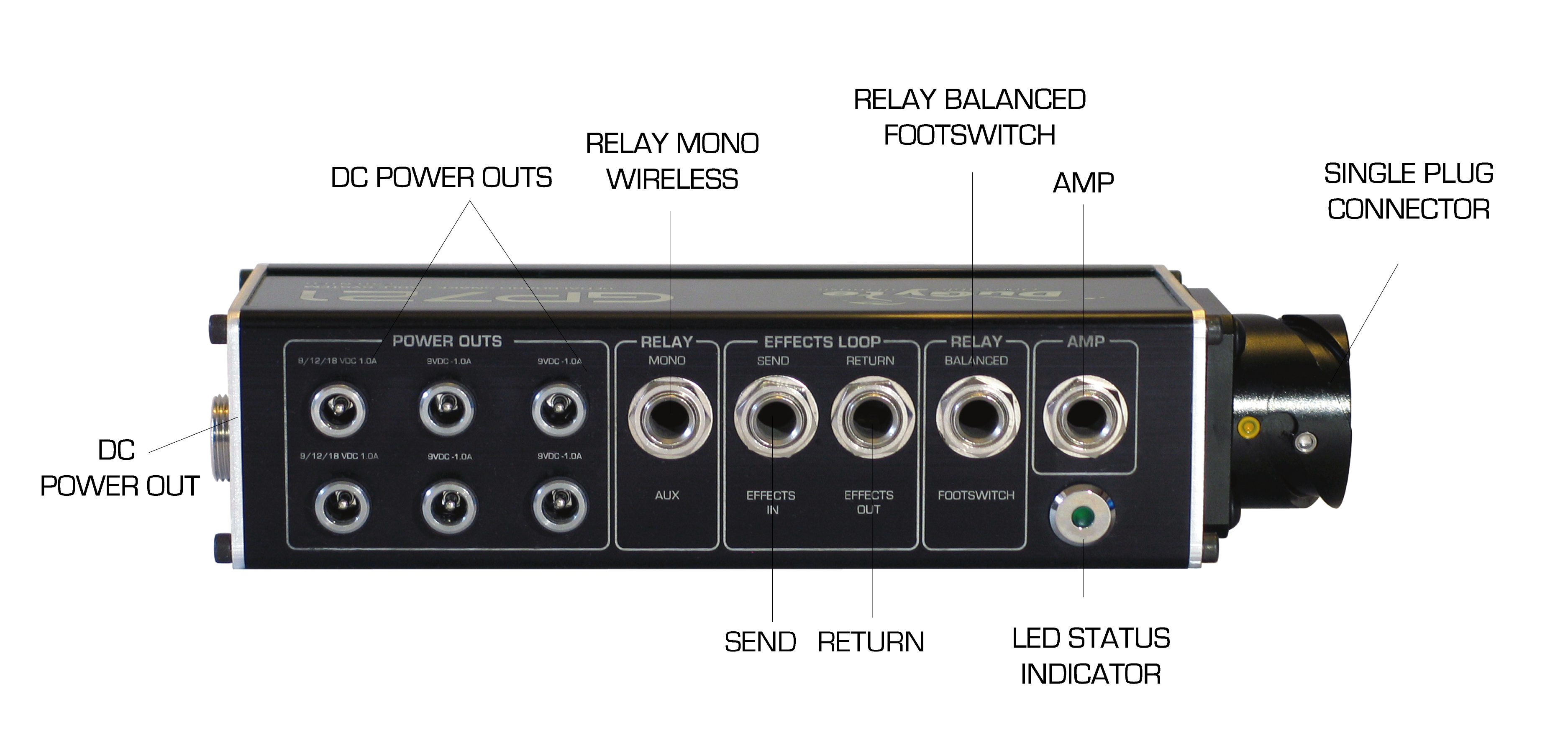

DuGyte GP721 Junction Box specifications

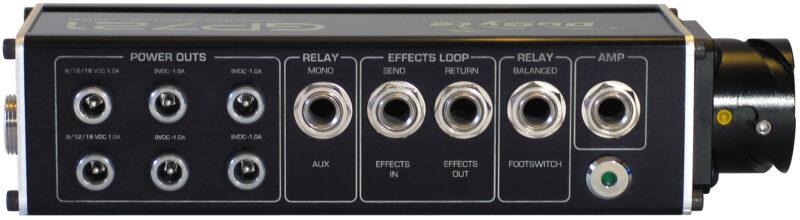

Pedalboard Signal Input Connections

  • Amp: 6.3mm Mono Jack – Input to amplifier
  • Relay Aux-1: 6.3mm Stereo Jack – for Footswitch or Other Input/Output
  • Effects Loop Return: 6.3mm Mono Jack – Input to Effects Loop
  • Effects Loop Send: 6.3mm Mono Jack – Output from Effects Loop
  • Relay Aux-2: 6.3mm (1/4 inch) Mono Jack – Wireless Loopback or Other Input/Output

Pedalboard DC Isolated Power Connections

  • Four (4) Isolated Outputs – 9VDC @ 1000mA each –
  • Two (2) Isolated Outputs – switch selectable 9/12/18VDC @ 1000mA each
  • Standard 2.1mm DC-Power Sockets – centre pin negative
  • One (1) 24VDC Power Out (4 Pin Cobra plug -for power expansion options)
Cable Specification

DuGyte Cable Channels & Connections

All DuGyte Snake Cables use high quality industrial multi-pin connectors, and professional style audio jacks and plugs and are designed, manufactured and tested to withstand the rigorous life of touring and performing.

Pedalboard Junction Box Channels

Class Qty Type Usage Comments
Signal 1 Balanced/Stereo Channels Relay Aux-1
4 Unbalanced/Mono Channels Amp; Effects Loop Return; Effects Loop Send; Relay Aux-2
Power Out 4 DC Power Channels 9VDC Pedal Power Output
2 DC Power Channels 9/12/18VDC Pedal Power Output Switch selectable
1 DC Power Out 24VDC For stand-alone Viper Power
DuGyte Cable Leads & Connectors
Location / Class Qty Type Usage
Pedalboard 1 MPJL5-19 Pin Bayonet Connector All Signal & Power
Back stage Signal 1 6.3mm (1/4 in) TRS/Stereo Plug Relay Aux-1
4 6.3mm (1/4 in) TS/Mono Plug Amp; Effects Loop Return; Effects Loop Send; Relay Aux-2
Back stage Power In 1 DC Cobra Plug 24VDC Input Connect AC/DC Power Supply

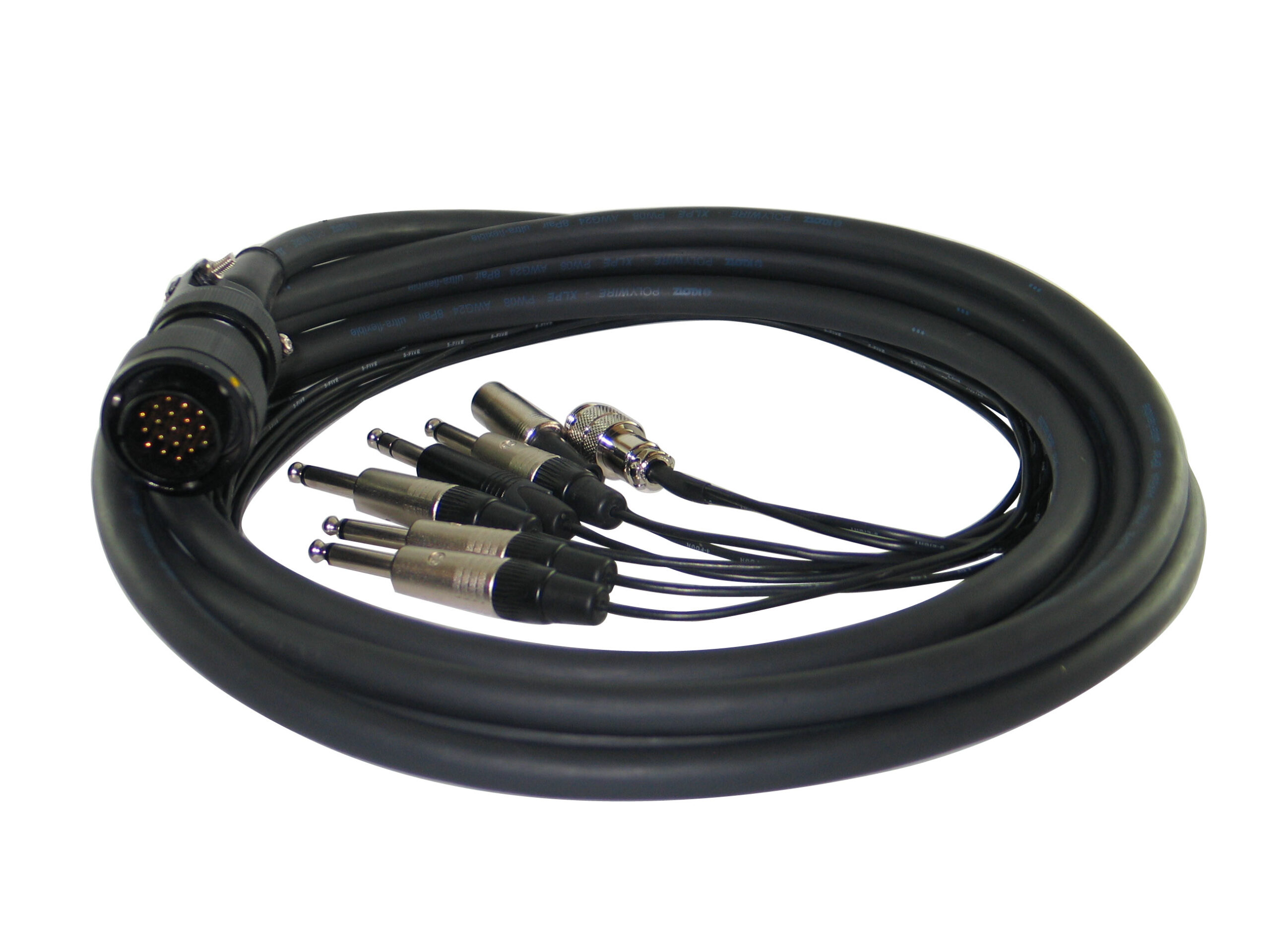

DuGyte All-In-One Cable Loom

PVC jacketed snake cable consisting of 24 AWG stranded bare annealed copper, polypropylene insulated signal and DC power channels individually shielded and jacketed.

    1. Signal & DC Power Lines
      • Conductor
        • AWG Size and Stranding: 24 AWG 7 strands 32 AWG
        • Material: Bare annealed copper
      • Insulation Material: Polyvinyl chloride
      • Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
      • Pair Jacket Material: White polyvinyl chloride
    2. Cable Assembly
      • Jacket Material: Matte polyvinyl chloride
      • Jacket Color: Black
    3. Electrical Specifications
      • Capacitance @ 1 kHz:
        • Between conductors: 25 pF/ft.
        • Conductor to shield: 45 pF/ft.
      • Characteristic Impedance: 60 ohms nominal
      • Resistance at 20C: 24.5 ohms/1000 ft.
Power Supply Specification

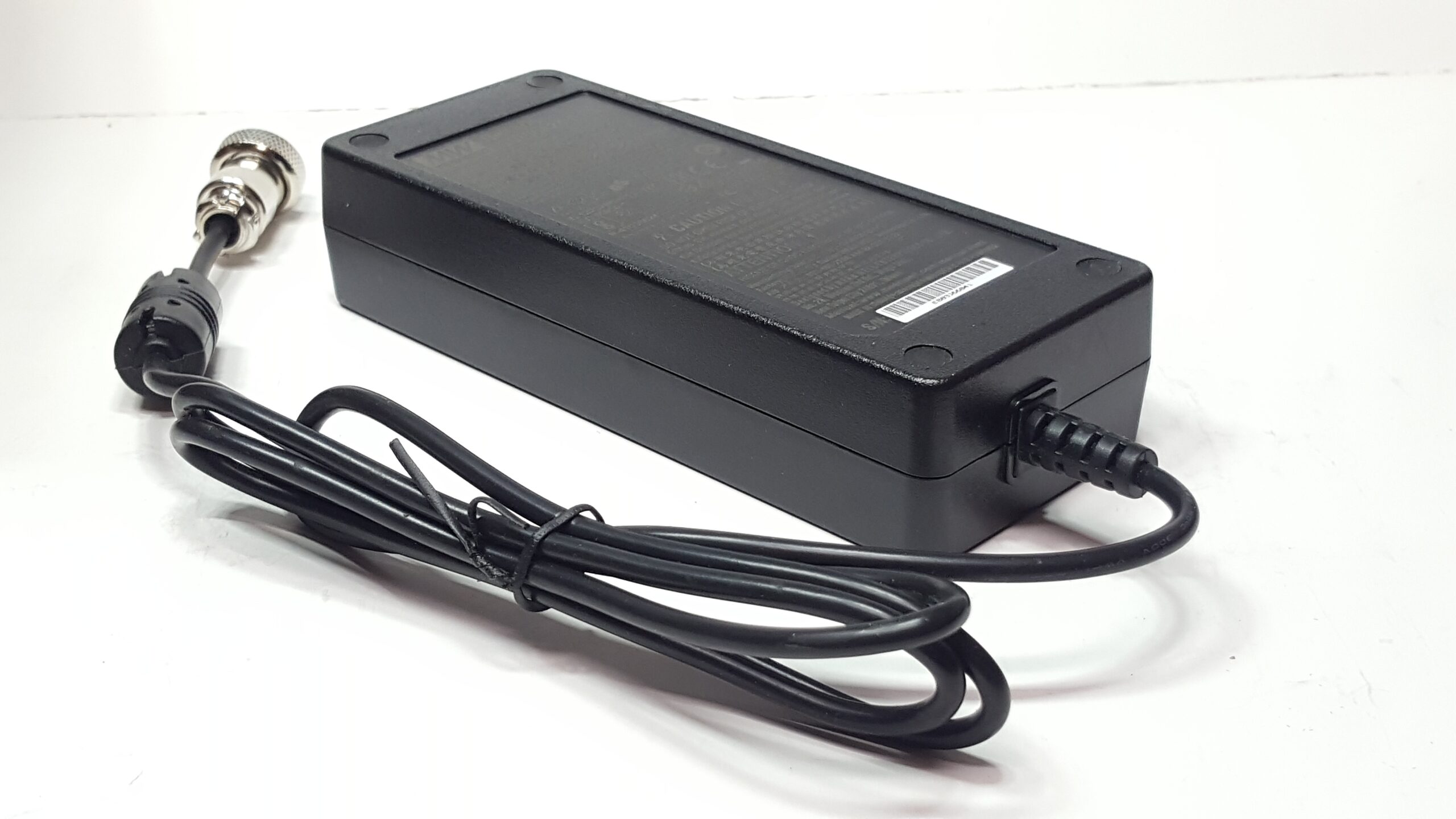

DuGyte GP-Series AC/DC Power Supply

Overview

DuGyte GP Series AC/DC Power Supplies are a highly reliable, single-output, desktop style power supply. Its rating is a class II power unit (with PFC), equipped with a standard IEC320-C14 AC inlet. It has an operating input range from 100VAC to 240VAC..

With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, all DuGyte GP Series Power Supplies are compliant with USA EISA 2007IDoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. The entire GP-Series Power Supplies utilize 94V-0 flame retardant plastic case and are certified for international safety regulations.

Features

  • Global Certificates: C Tick, UL, CUL, CE, TUV, PSE and more
  • Universal AC Input Full range
  • 3 pole AC inlet IEC320-C14, Class II power unit
  • Built-in Active Power Factor Correction (PFC)
  • No Load Power Consumption <0.15W
  • Energy Efficiency Level VI
  • Short Circuit / Current Overload / Over Voltage / Over Temperature Protection
  • Fully-Enclosed Plastic Case
  • Wide-Range Working Temperature -30-+70℃
  • LED Power-On Indicator
