DuGyte 6CM Stereo Pedalboard Cable System
For AC Powered Pedalboard Systems
⠀
Optional Extra
Make your pedalboard neat with a mount for your 6CM. Don’t forget to add to your cart!

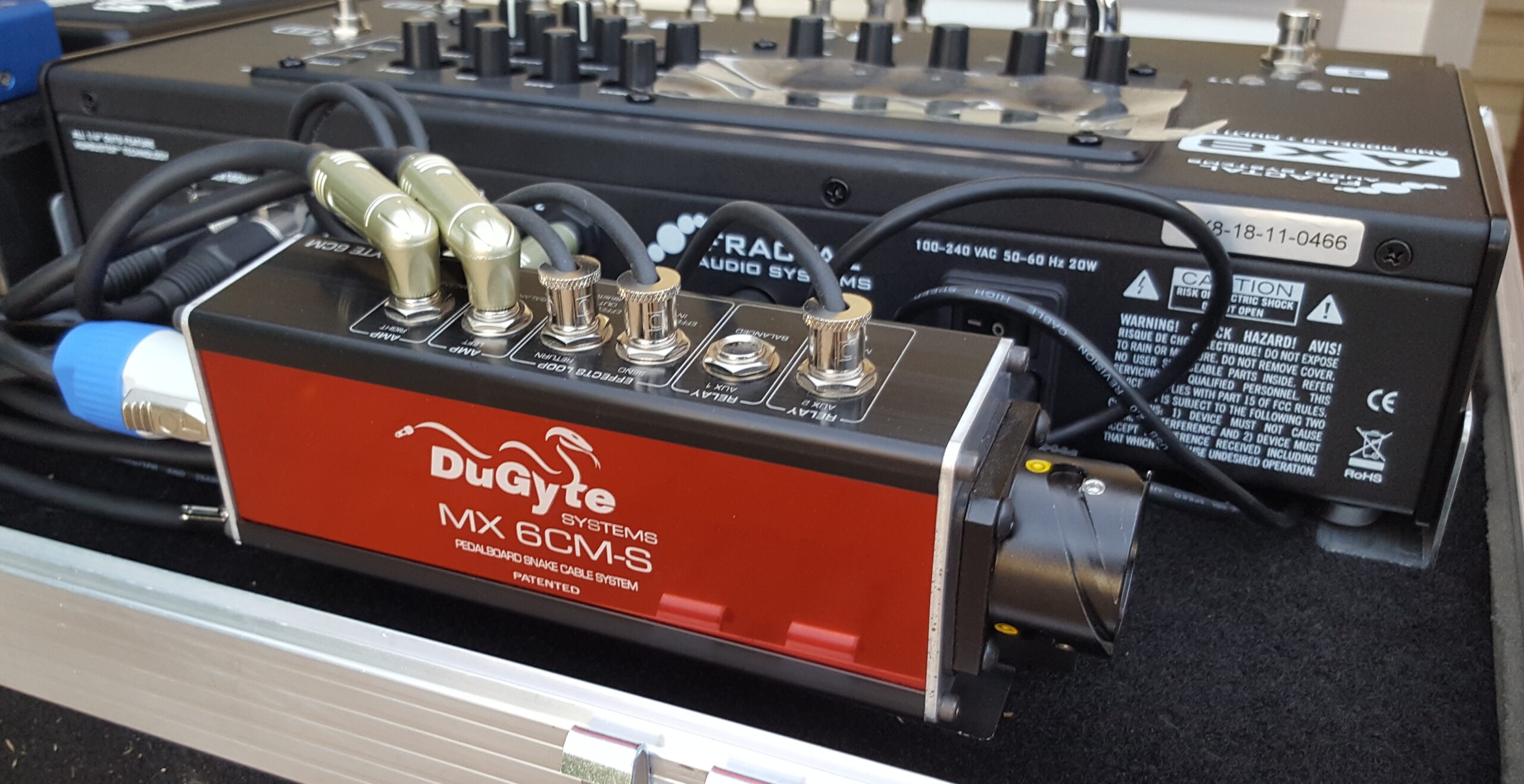

DuGyte 6CM Pedalboard Junction box
Located on the pedalboard, simply connect your power, pedals or multi effects unit to the corresponding inputs and outputs on the 5CM Junction box.
Single one cable connection
Stereo Amp Connections
Effects Loop for easy ‘in amp’ effects and 4 cable method connections
PowerCon AC 110/240 output
DuGyte 6CM Power Connection
The DuGyte MX Series offers the best of both worlds when in comes to power. AC and optional DC power can be supplied using just the single DuGyte Cable. So BYOPS, (Bring Your Own Power Supply) – stands true with the MX Series too. If you use AC powered DC power supplies to power your stomp box pedals, the 5CM cable is what you need! (If you need DC power just let us know when ordering)
For example the Voodoo labs, Zuma, Cioks, to name a few!
PowerCon AC Power Out
PowerCon Cable out, terminates to IEC plug
PowerCon AC Power In (Shown with AUD plug)

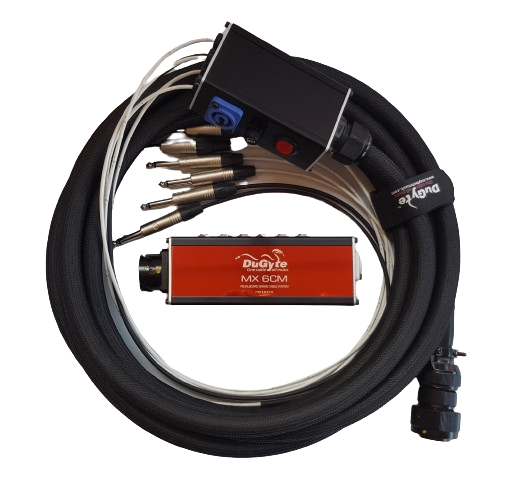

DuGyte Systems MX 6CM stereo delivers a fast and easy 4, 5 or 6 cable method signal and power pedalboard connection solution using just one cable loom. Using 100% pure copper conductors and AC Ground Isolation Circuity, the DuGyte 6CM will deliver a complete noiseless performance, eliminate any hum, buzz or noise in your pedalboard – improving your tone and sound output.
The DuGyte 6CM “Pedalboard Junction Box” provides the following connections at the pedalboard:
| Signal Inputs include | |
| Amplifier Input | 2 x 6.3 phono socket (balanced) |
| Relay (Mono) | 6.3 phono socket (mono) for Wireless Loop back |
| Effects Send | 6.3 phono socket (mono) |
| Effects Return | 6.3 phono socket (mono / Humbuster)) |
| Relay (Stereo) | 6.3 phono socket (stereo) for Amp Footswitch |
| Power Features | |
| AC power line | Universal 110/240 VAC up to 10 amps |
The 6CM comes with a standard cable length of five (5) meters. Option is available to increase cable length when ordering. (Additional charges may apply)
| 6CM Signal Inputs | |
| Pedalboard Junction box | 2 x Amplifier (Balanced), Relay (Stereo), Relay (Mono) Effects Loop Send & Return |
| 6CM Power Out | |
| At the pedalboard | AC PowerCon to IEC plug |
| 6CM Back Stage Connectors | |
| 6.3mm Phono jack | Stereo jack plug for balance amplifier x 2 and Relay |
| 6.3mm Phono jack | Relay (Mono) Effects Send & Return (Humbuster) |
| 6CM Cable Connector | |
| Maytech MPJL5-19 | 19 Pin Bayonet Connector |
| MX6CM Cable Specifications | |
| Cable – Signal | DuGyte Flex 07 x 24AWG |
| Cable Power | DuGyte Flex 19 x 14 AWG |
| Capacitance | cond / cond 85pfm cond / shield 170pfm |
| Conductor | 100% pure copper 7 x 0.20mm |
| Conductor Resistance | <85Ω/km |
| Crosstalk Attenuation | >100dB (15khz) |
| Working Temp | – 20◦C / +70◦C |
The DuGyte 6CM is also part of what we call BYOPS which means Bring Your Own Power Supply – The 6CM will work with any AC (110 / 240 VAC) powered DC pedalboard power supply.
For example it will work with the following power supplies, plus many more.
| Brand | Model |
| Voodoo labs | Pedal Power 3, Pedal Power 3 Plus, Pedal Power 2 Plus, Pedal Power ISO 5, Pedal Power 4×4, Pedal Power MONDO |
| Cioks | Cioks SOL, Cioks DC7, Cioks DC10, Cioks AC10 |
| Rockboard | ISO Block V6 IEC, ISO Block V9 IEC, ISO Block V12 IEC |
| Strymon | Zuma, Zuma R300 |
| Fender | Engine Room LVL5, Engine Room LVL8, Engine Room LVL12 |
| NUX | Zeus Z10 |
If you use a DC power supply like a Ojai or VOLT See the DC Series here
DuGyte 6CM Mount – click here
DuGyte Premium Built Guitar Cables – click here
