MX Series Rapid Plug-n-Play Pedalboard Cable System
The Ultimate Pedalboard Cable System
Click here to add your own text
MX Series Rapid Plug-n-Play
Introducing the ultimate pedalboard rig set up. The MX Series Rapid Plug-n-Play lets you connect your entire pedalboard signal and power to backstage power supplies and amps/effects using just one cable!
To get running at gig time just connect the pedalboard, to the back rack, using the all in one DuGyte cable. Turn on the power and you are ready to rock – even before the drummer has put down his kick drum!
The Rapid Plug-n-Play system works with either the 5 & 6CM models and has optional DC power up to 24VDC, 3 Amps.
Industry Standard PowerCon connectors
2 x AC Isolated power outputs
Option USB power
Multiple signal channels inc effects Loop for easy ‘in amp’ effects connections
MX Series Pedalboard Junction Box
Single one plug connection
Effects Loop Send & Return
Amp in connection
PowerCon power out connectors
Only logged in customers who have purchased this product may leave a review.
The MX Series Rapid Plug-n-Play Rack introduces a game changing way to set your pedalboard. Using patented technology, 100% pure copper conductors and AC Ground Isolation Circuity, the DuGyte MX Series Rapid Plug-n-Play will eliminate any hum or noise in your pedalboard – improving your tone and sound output.

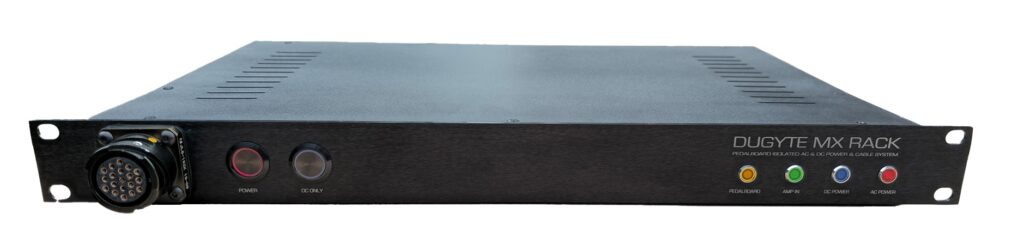

The Rapid Plug-n-Play provides the following connections at front and back stage:
| Signal Inputs include | |
| Amplifier Input | 6.3 phono socket (Balanced) |
| Relay (Mono) | 6.3 phono socket (mono) for Wireless Loop back |
| Effects Send | 6.3 phono socket (mono) |
| Effects Return | 6.3 phono socket (mono) |
| Relay (Stereo) | 6.3 phono socket (stereo) for Amp Footswitch |
| Power Features | |
| AC power line | 110 to 240 AC 50/60htz, 10 amps |
| DC Power (Optional extra*) | 24VDC @ 3amps |
| LED Indicator | |
| Power On Status | Red |
| Multi pin Connected | Yellow |
| Amp in | Green |
| DC Power* | Blue |
The MX Series Rapid Plug-n-Play comes with a standard cable length of five (5) meters with two multi pin connectors. Option is available to increase cable length when ordering. (Additional charges may apply)
| Signal Inputs- Pedalboard | |
| Pedalboard Junction box (MX5) | Amplifier, Relay (Stereo), Relay (Mono) Effects Loop Send & Return |
| Power Out – Pedalboard | |
| AC Mains – PowerCon | AC 110 – 240vAC 50/60Htz |
| DC (Optional extra) | 24DC @3 A |
| Back Stage Rack Signal Outs | Amplifier, Relay (Stereo), Relay (Mono) Effects Loop Send & Return |
| Back Stage Rack Power In | AC 110 – 240vAC 50/60Htz |
| Back stage Power Outs | Ground Isolated AC 110 – 240vAC 50/60Htz |
| Cable Connector | |
| Maytech MPJL5-1919 | 19 Pin Bayonet Connector both ends |
| Rapid Plug-n-Play Cable Specifications |
|
| Cable | DuGyte Flex 07 x 24AWG |
| Capacitance | cond / cond 85pfm cond / shield 170pfm |
| Conductor | 100% pure copper 7 x 0.20mm |
| Conductor Resistance | <85Ω/km |
| Crosstalk Attenuation | >100dB (15khz) |
| Working Temp | – 20◦C / +70◦C |
The MX Rapid Plug-n-Play system offers AC power that is both EMI filtered and ground isolated ensuring clean, noise and hum free AC power at the pedalboard. This means you can connect directly any mains powered multi effects unit, or any AC powered power supply, like a Voodoo labs or Zuma.

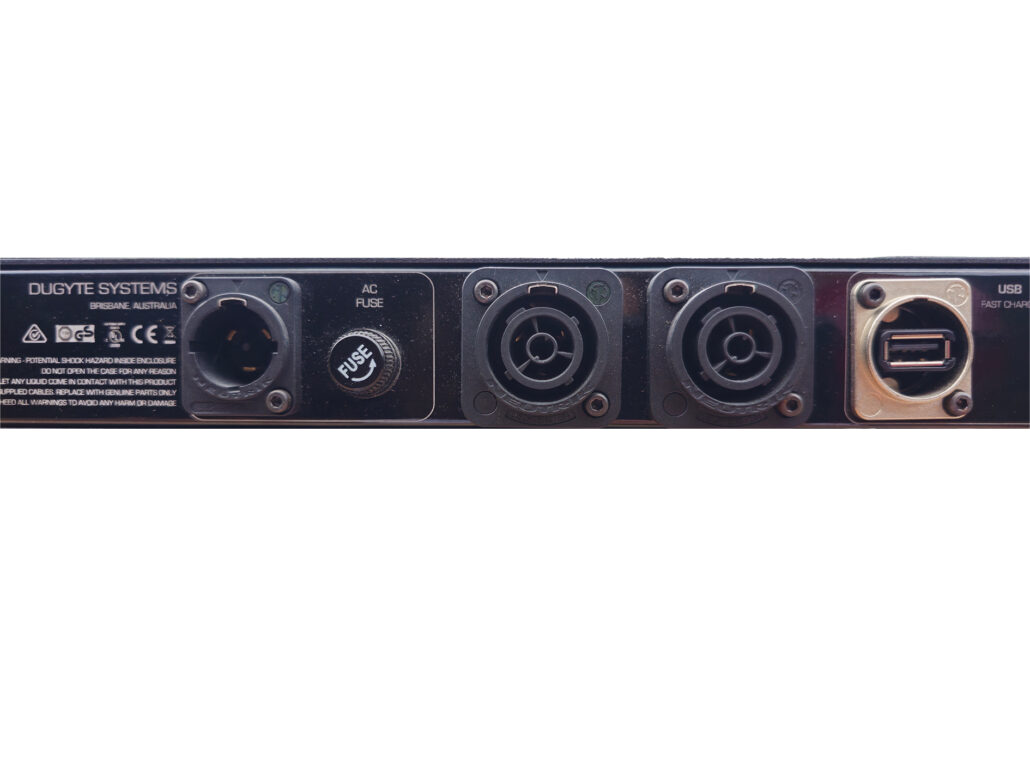

Backstage, mains power (AC) is connected to the rack unit . Each Plug-n-Play rack provides two ground isolated power outs. These can be used for your amplifier, or other rack gear.
