DuGyte DC5 Pedalboard Cable System
For DC Powered Pedalboard Systems
⠀
Optional Extra
Make your pedalboard neat with a mount for the DC 5. Don’t forget to add to your cart!
DuGyte DC 5 Pedalboard Junction box
Located on the pedalboard, simply connect your power supply, pedals or multi effects unit to the corresponding inputs and outputs on the DC 5 Junction box.
Single one cable connection
Amp and Relay connections
LED power indicator
Effects Loop for easy ‘in amp’ effects and 4 cable method connections
DC 2.1mm Power outs Positive Sleeve, Negative Pin
DuGyte DC Series Power Connection
The DuGyte DC Series has what we call BYOPS, meaning Bring Your Own Power Supply – So the DC 5 will work with any DC pedalboard power supply-up to 24V, 3A DC.
Check out this Strymon Ojai connected to the DC 5!
2 x DC Power Outs
Connect to any DC pedalboard power supply

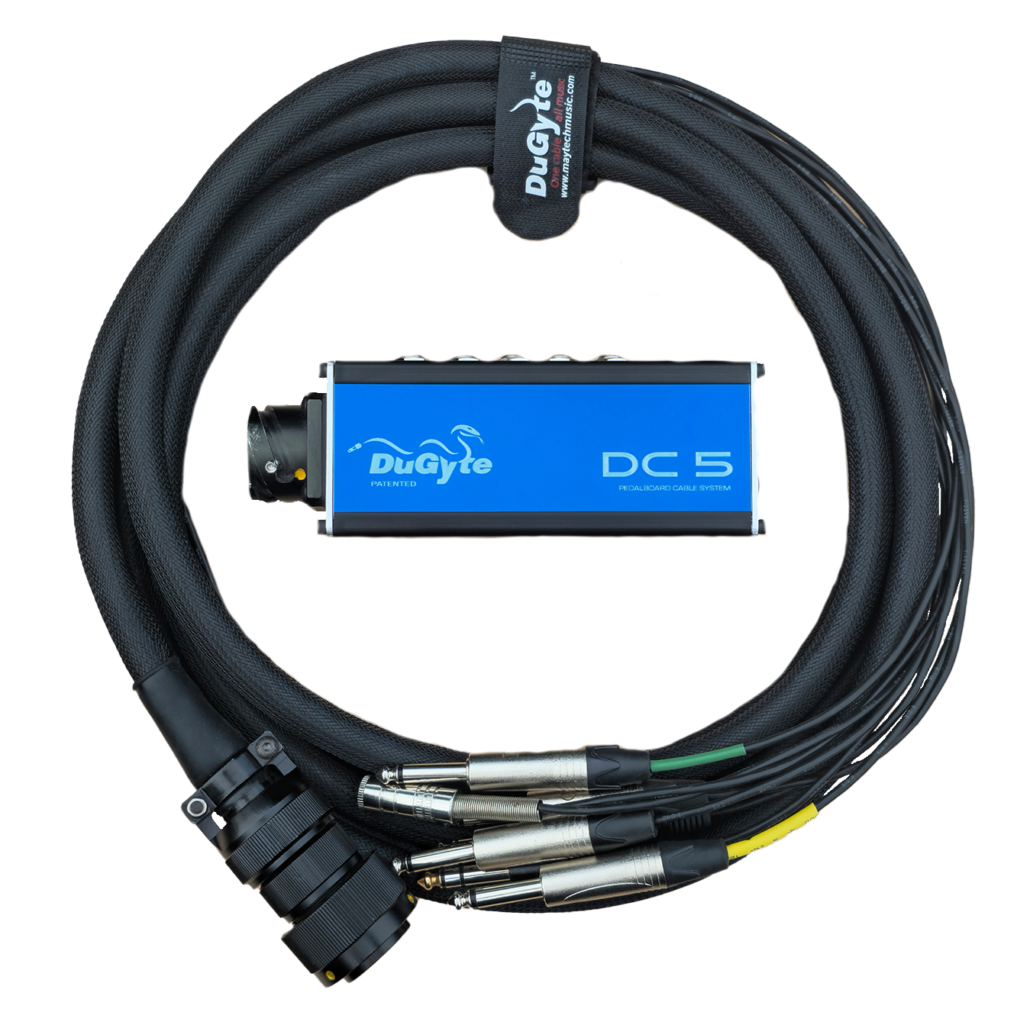

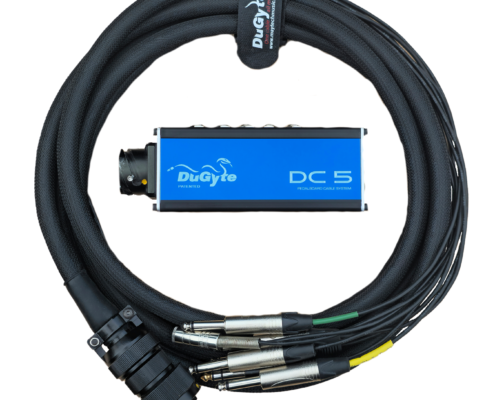

DuGyte Systems DC 5 Stereo Pedalboard Cable System delivers a fast and easy signal and power pedalboard connection solution using a just one cable loom. Using 100% pure copper conductors, the DuGyte DC 5 will deliver a complete noiseless performance, eliminate any hum or noise in your pedalboard – improving your tone and sound output.

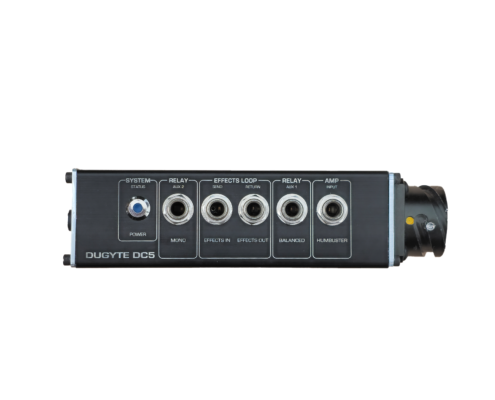

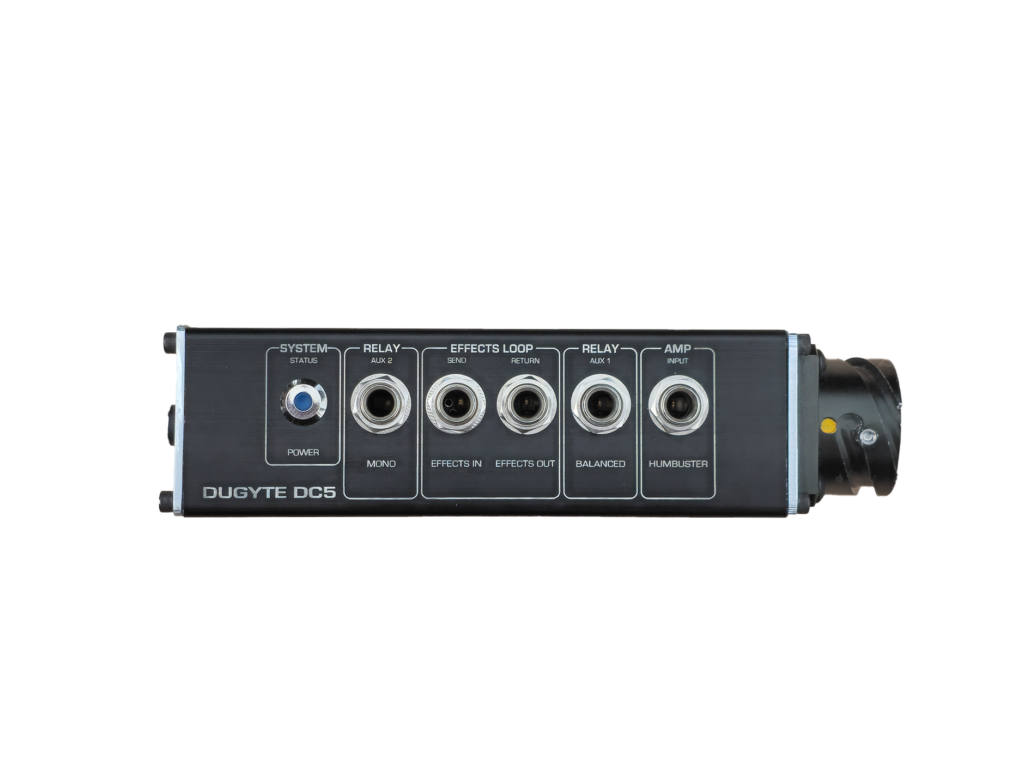

The DuGyte DC 5 “Pedalboard Junction Box” provides the following connections at the pedalboard:
| Signal Inputs include | |
| Amplifier Input | 6.3 phono socket (mono) |
| Relay (Mono) | 6.3 phono socket (mono) for Wireless Loop back |
| Effects Send | 6.3 phono socket (mono) |
| Effects Return | 6.3 phono socket (mono) |
| Relay (Stereo) | 6.3 phono socket (stereo) for Amp Footswitch |
| Power Features | |
| DC power line | up to 24 VDC, 3 amps |
| LED Indicator | Power On |
The DC5 comes with a standard cable length of five (5) meters. Option is available to increase cable length when ordering. (Additional charges may apply)
| DC 5 Signal Inputs | |
| Pedalboard Junction box | Amplifier, Relay (Stereo), Relay (Mono) Effects Loop Send & Return |
| DC 5 Power Out | |
| At the pedalboard | 2 x 2.1mm power outs Negative pin, Positive sleeve |
| DC 5 Back Stage Connectors | |
| 6.3mm Phono jack | Stereo jack plug for balance Relay |
| 6.3mm Phono jack | Mono jack plug for Amp, Relay (Mono) Effects Send & Return |
| DC 5 Cable Connector | |
| Maytech MPJL5-19 | 19 Pin Bayonet Connector |
| Cobra DC 5 Cable Specifications | |
| Cable | DuGyte Flex 07 x 24AWG |
| Capacitance | cond / cond 85pfm cond / shield 170pfm |
| Conductor | 100% pure copper 7 x 0.20mm |
| Conductor Resistance | <85Ω/km |
| Crosstalk Attenuation | >100dB (15khz) |
| Working Temp | – 20◦C / +70◦C |
The DuGyte DC 5 is what we call BYOPS which means Bring Your Own Power Supply – The DC 5 will work with any DC powered pedalboard power supply-up to 24v DC.
For example the DC Series will work with the following power supplies, plus many more.
| Brand | Model |
| MXR | DC Brick, ISO Brick |
| Voodoo Labs | Pedal Power X4, Pedal Power X8 |
| Strymon | Ojai, Ojai R30 |
| Walrus CANVAS | Power 5, Power 8, Power 15, Power 22 |
| Cioks | Cioks 4 Expander, Cioks 8 Expander, Cioks Crux |
| Mono Pedalboards | Small, Medium, Large |
| Warwick Rockboard | ISO V6, ISO V6+, ISO V10, ISO V16 |
| JOYO | JP-04, JP-05 |
| Ernie Ball | VOLT Power Supply |
| Eventide | Power Mini |
(If you use a AC power supply like a Zuma or a Voodoo Labs 2 or 3, See the MX series here)
DuGyte DC 5 Mount – click here
DuGyte Premium Built Guitar Cables – click here
